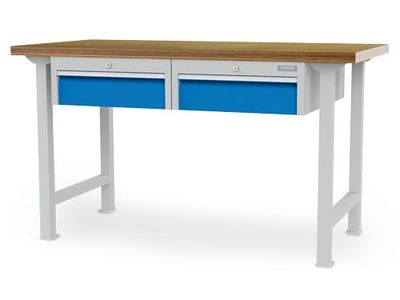

Inline workbench, depth 750mm, R 18-24, 2x drawers Item no. 03.15.520.2V

Assembly instructions

Technical data sheet

Item no. 03.15.520.2V Category Workbenches Subcategory Modular workbench R 18-24

Recommended retail price 912.37 EUR

Article description

Housing: powder-coated
drawer: galvanised
individual pull-out lock
individual locking per drawer possible
moulded recess lock
cylinder lock with central locking
cylinder lock with 2 x keys
handle bars with labeling strip
double feet made of square tube

Catalogue (Page) Catalogue (223)
Gesamtkatalog

Grid R 18-24

Order Unit 1 Stück

Lead times 20 - 25 days Werktage

Standard colours 1

Standard colour RAL 7035 / RAL 5012

Front colors RAL 1023RAL 3000RAL 3003RAL 3020RAL 5002RAL 5005RAL 5010RAL 5012RAL 5013RAL 6011RAL 6018RAL 7016RAL 7035RAL 7040RAL 9005RAL 9006RAL 9010

Corpus colors RAL 1023RAL 3000RAL 3003RAL 3020RAL 5002RAL 5005RAL 5010RAL 5012RAL 5013RAL 6011RAL 6018RAL 7016RAL 7035RAL 7040RAL 9005RAL 9006RAL 9010

Worktop material Beech multiplex

Worktop width 1500 mm

Worktop depth 750 mm

Worktop thickness 40 mm

Number of drawers 2

Panel height left 1x150 mm

Panel height right 1x50 mm

Drawer slide full pull-out 100%

Drawer load capacity 100 kg

Drawer guide ball-bearings

Usable drawer dimension 450 x 600 mm

Usable height of housing 150 mm

Total carrying capacity 200 kg

Width 1500 mm

Depth 750 mm

Height 859 mm

Tare weight 63.33 kg

Customs tariff number 94032080

EAN 4050413067226

Request article from manufacturer

Standard colour RAL 7035 / RAL 5012

Corpus

Fronts

Quantity

Technical and price variations are possible given the price of raw material. The price is calculated without VAT, valid within Germany. Except mistakes or omission.
